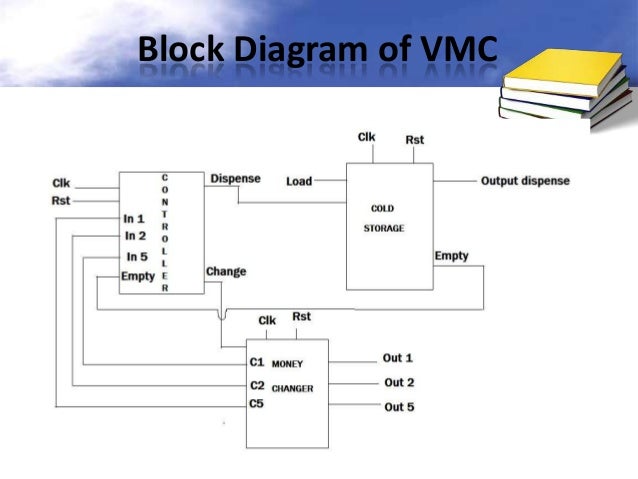

FSM – vending machine in VHDL. In this post, I will present to you how to implement a final state machine(FSM) that describes the functionality of a vending machine. This page consists of design examples for state machines in VHDL. A state machine is a sequential circuit that advances through a number of states. There are two different main types of finite state machines the Mealy FSM and the Moore FSM. Learn how to implement a Finite State Machine (FSM) in VHDL.
How to Implement a Finite State Machine in VHDL
Assuminig i want to display it on fpga do i need to implement the test bench or i can just creat a vector to call the values. Slot Machine Posted by michael pampellona in forum: You May Also Like: You are commenting using your Facebook account. Have you understood what happened in the article? VHDL coding Posted by haran in forum: After you are fully certain about your design, try to look at the code i posted, if there are somethings which are not clear, ask me about them.
In this post, I will present to you how to implement a final state machine FSM that describes the functionality of a vending machine:. Moreover we have only 3 types of coins: Here, in this state we do exactly that. You can use it for academic purposes for sure as you like.
Assuminig i want to display it on fpga do i need to implement the test bench or i can just creat a vector to call the values. I believe that a testbench is more elegant and neat — easy to test every possible scenario out there. Hi Ashley, Of course, what do you have? This signal should remain high for one clock cycle. The vending machine behaves as follows: All of the outputs should be zero in this state. Please include a state diagram and test bench outputs. Have you understood what happened in the article?
The most important thing, i suggest you start with is understanding the states of the FSM that you need. Then, you should draw them to understand the relation no VHDL until now. After you are fully certain about your design, try to look at the code i posted, if there are somethings which are not clear, ask me about them. So to sum it up, do the design on paper for your FSM.
Please send the test bench code to my mail mattasandeep53 gmail. Like Liked by 1 person. You are commenting using your WordPress. You are commenting using your Twitter account. You are commenting using your Facebook account. Notify me of new comments via email. In this post, I will present to you how to implement a final state machine FSM that describes the functionality of a vending machine: Note that the FSM is a Moore machine, since the output relates to the current state.
